Freestanding vacuum chamberVC P400x400
Vacuum chamber made from an extruded profile with a volume of approximately 95 litres
Our patented aluminium vacuum chambers, made from extruded profiles, are flexible up to a length of 3 metres.
starting at 5,225 € excl. VAT and shipping
Start an inquiry
Vacuum chamber made from extruded aluminium profiles
The VC P400x400 vacuum chamber from Diener electronic is a hermetically sealed container and forms the basis of every vacuum system. Patented aluminium vacuum chambers in particular are unique and flexible chamber systems based on extruded aluminium profiles. The three-metre-long profiles are cut to the required length and fitted with a bolted rear panel and a door. Depending on the model, the side walls of the profile already feature slots into which the product carriers can be easily inserted.
Technical data

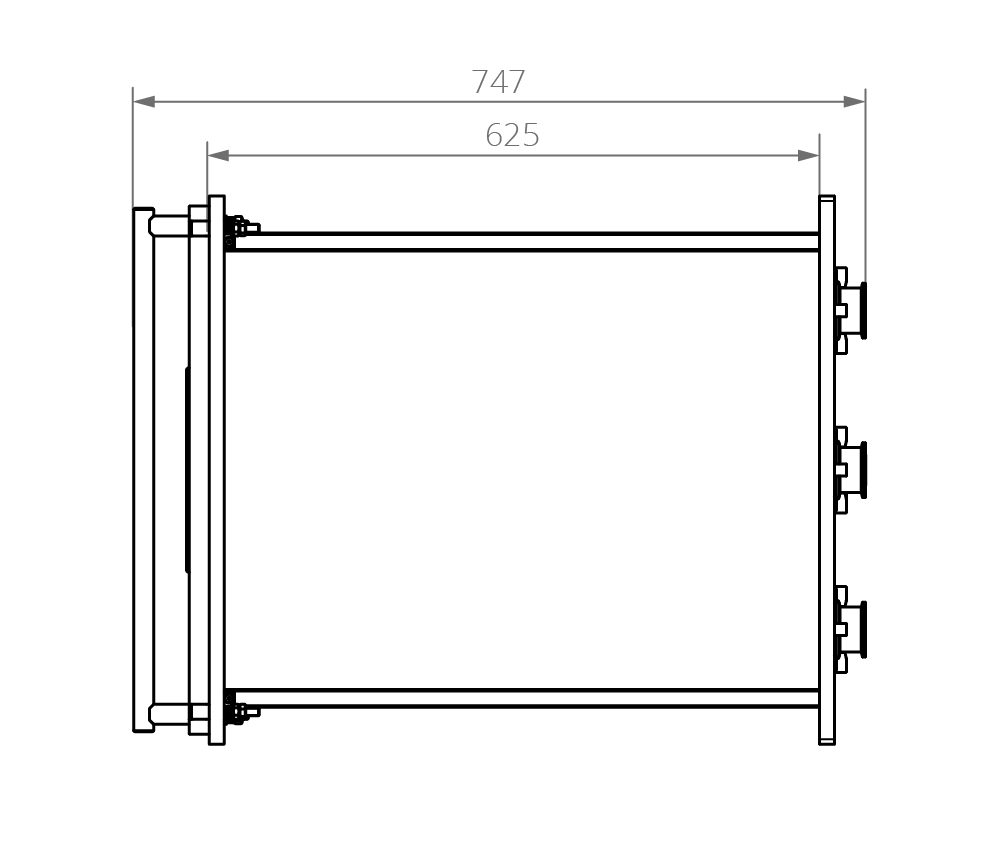

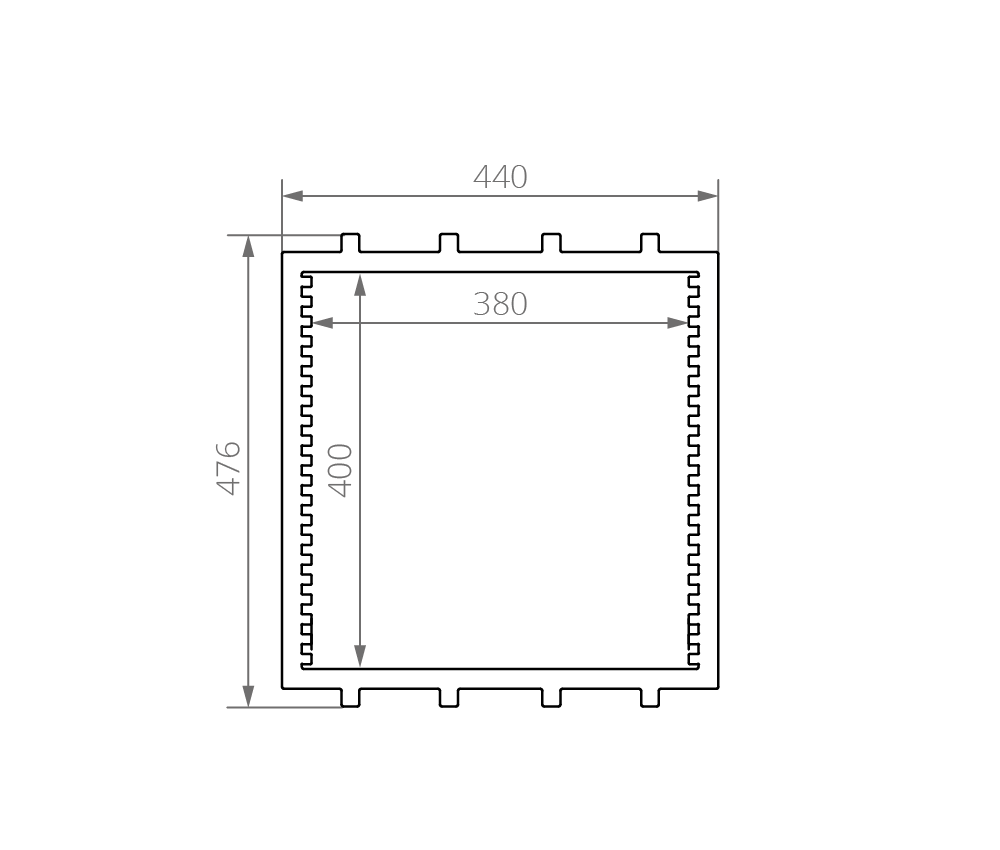

Internal dimensions
Width
380 mm
Height
400 mm
Depth
625 mm
Volume
approx. 95 liters

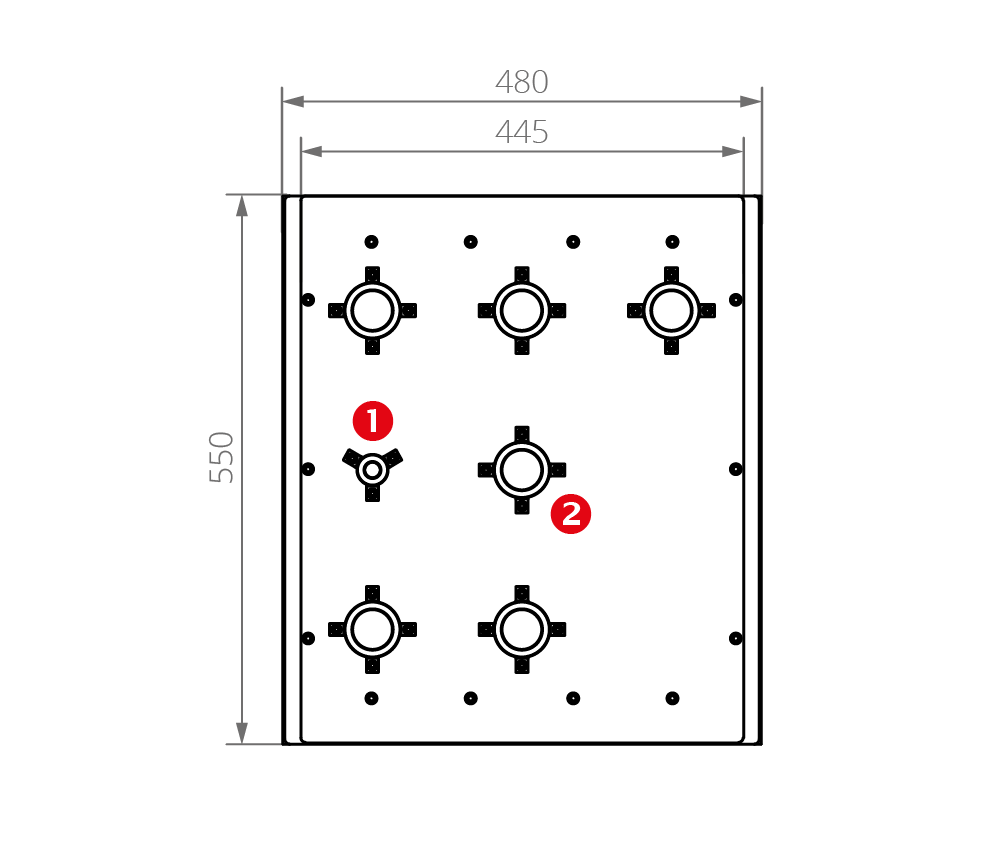

Connections
KF 16
1
KF 40
6
Door
Hinged door
Weight
approx. 92 kg
Material
Aluminium
Optional
Depth variably expandable up to max. 3000 mm: ± 15.2 l; ± 11.00 kg
Technical changes reserved.
