Atmospheric pressure plasma systemsThe efficient plasma pre-treatment
With plasma nozzles (Plasma Jet) inline surface treatment
Improve the performance, durability and aesthetics of your products with atmospheric pressure plasma systems from Diener electronic, an innovative and environmentally friendly technology. It is a process that uses cold plasma with the help of plasma nozzles (plasma jet) to improve the properties of materials. Surface pre-treatment using atmospheric pressure plasma technology is time-saving, cost-effective and offers excellent results.
Wide range of applications
Discover the innovative technology that functionalizes materials without damaging them. This groundbreaking method uses atmospheric pressure plasma to activate, clean and coat surfaces in seconds.
Plasma cleaning
Increasing cleanliness: removing dirt, grease and impurities with our atmospheric pressure plasma systems
Plasma activation
Improved adhesion: bonding, painting and coating with optimum adhesion thanks to our plasma nozzle technology
Plasma coating
Functionalization of surfaces: Increased wettability, hydrophobicity or non-stick coating using PlasmaBeam (Plasma Jet) devices
The right plasma nozzle for your plasma treatment
Diener electronic offers you a choice of four different plasma nozzles, which work in open air. Plasma is generated in different treatment widths, depending on the nozzle. From 3 - 5 mm with our mini nozzle up to 120 mm with the rotating RT nozzle. There are therefore no limits to your plasma pre-treatment, as the plasma nozzles can also be positioned next to each other to ensure extensive cleaning and activation.
PlasmaBeam STANDARD
Housing dimensions
Tabletop
W 540 mmx H 280 mmx D 450 mm
Dimensions Plasma nozzle
⌀ 32 mm x
D 210 mm
Weight: 1.0 kg
Cable length: 3 m
Treatment width
approx. 8 - 12 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 8 bar
Gas consumption: 2 m³/h
Generator
40.00 kHz | Power output 300 W
Gas supply
6 mm quick-connect bulkhead fitting
Power supply
230 V | 16 A

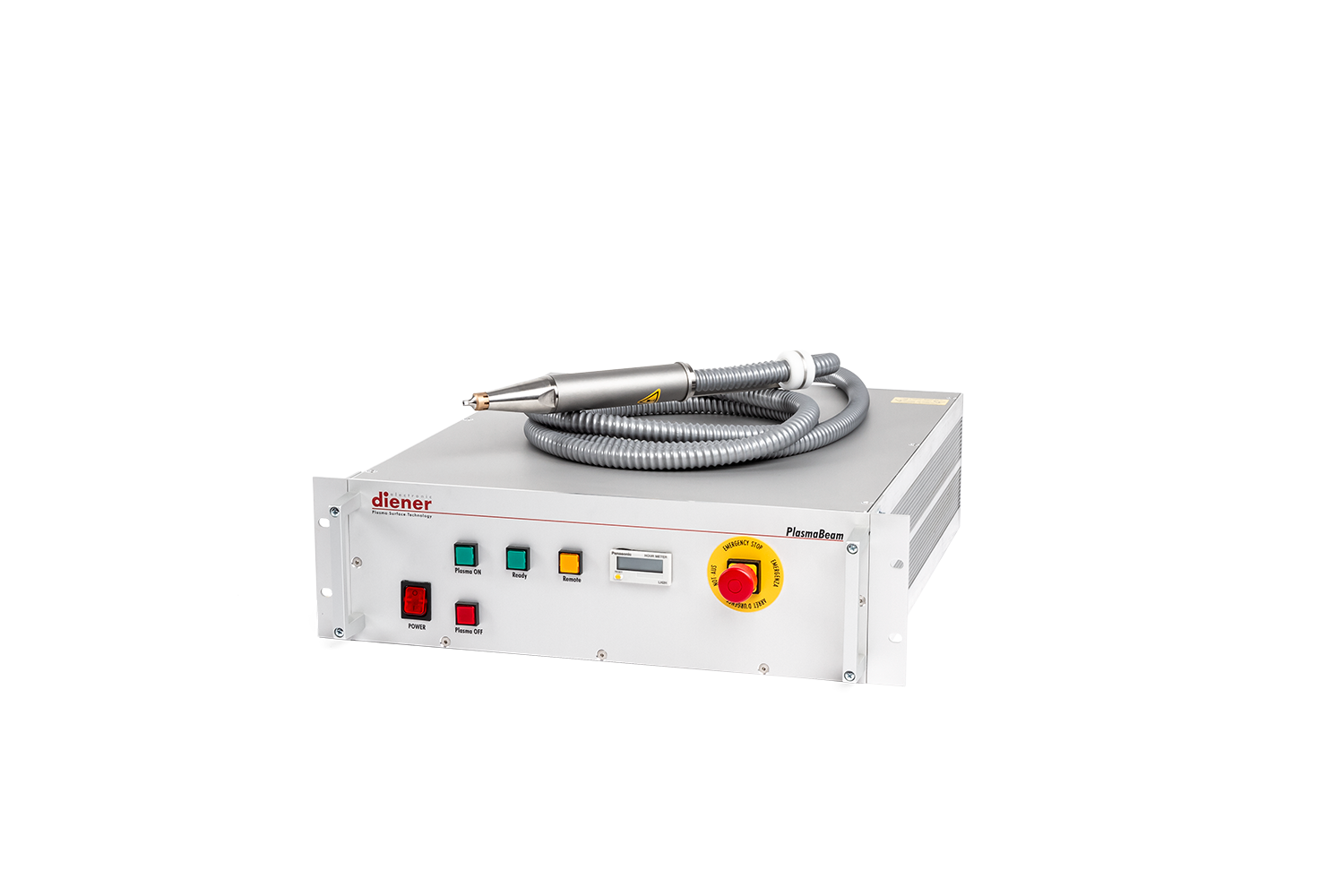

PlasmaBeam 19"
Housing dimensions
19" housing
W 420 mmx H 133 mmx D 500 mm
Dimensions Plasma nozzle
⌀ 32 mm x
D 210 mm
Weight: 1.0 kg
Cable length: 3 m
Treatment width
approx. 8 - 12 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 8 bar
Gas consumption: 2 m³/h
Generator
40.00 kHz | Power output 300 W
Gas supply
6 mm quick-connect bulkhead fitting
Power supply
230 V | 16 A
PlasmaBeam DUO
Housing dimensions
Tabletop
W 540 mmx H 280 mmx D 450 mm
Control unit
Manual control
Semi-automatic control
Dimensions Plasma nozzle
Quantity: 2
⌀ 32 mm x
D 210 mm
Weight: 1.0 kg
Cable length: 3 m
Treatment width
approx. 8 - 12 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 8 bar
Gas consumption: 4 m³/h / nozzle
Generator
40.00 kHz | Power output 2 x 300 W
Gas supply
6 mm quick-connect bulkhead fitting
Power supply
230 V | 16 A
PlasmaBeam PC
Housing dimensions
Tabletop
W 540 mmx H 280 mmx D 450 mm
Control unit
Manual control
Semi-automatic control
Process visualisation software on a PC
Profinet connection
Dimensions Plasma nozzle
⌀ 32 mm x
D 210 mm
Weight: 1.0 kg
Cable length: 3 m
Treatment width
approx. 8 - 12 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 8 bar
Gas consumption: 2 m³/h
Generator
40.00 kHz | Power output 300 W
Gas supply
6 mm quick-connect bulkhead fitting
Power supply
230 V | 16 A
PlasmaBeam DUO PC
Housing dimensions
Tabletop
W 540 mmx H 280 mmx D 450 mm
Control unit
Manual control
Semi-automatic control
Process visualisation software on a PC
Profinet connection
Dimensions Plasma nozzle
Quantity: 2
⌀ 32 mm x
D 210 mm
Weight: 1.0 kg
Cable length: 3 m
Treatment width
approx. 8 - 12 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 8 bar
Gas consumption: 4 m³/h / nozzle
Generator
40.00 kHz | Power output 2 x 300 W
Power supply
100 - 240 V
PlasmaBeam OEM
Housing dimensions
Tabletop
W 370 mmx H 140 mmx D 330 mm
Intermediate transformer
W 205 mmx H 115 mmx D 230 mm
Control unit
Semi-automatic control
Dimensions Plasma nozzle
⌀ 32 mm x
D 210 mm
Weight: 1.0 kg
Cable length: 3 m
Treatment width
approx. 8 - 12 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 8 bar
Gas consumption: 2 m³/h
Generator
40.00 kHz | Power output 300 W
Gas supply
6 mm quick-connect bulkhead fitting
Power supply
230 V | 16 A
PlasmaBeam MINI
Housing dimensions
Tabletop
W 270 mmx H 190 mmx D 320 mm
Control unit
Manual control
Semi-automatic control
Dimensions Plasma nozzle
⌀ 22 mm x
D 185 mm
Weight: 0.9 kg
Cable length: 2 m
Treatment width
approx. 3 - 5 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 6 bar
Gas consumption: 6 l/min
Gas supply
6 mm quick-connect bulkhead fitting
Power supply
230 V | 16 A

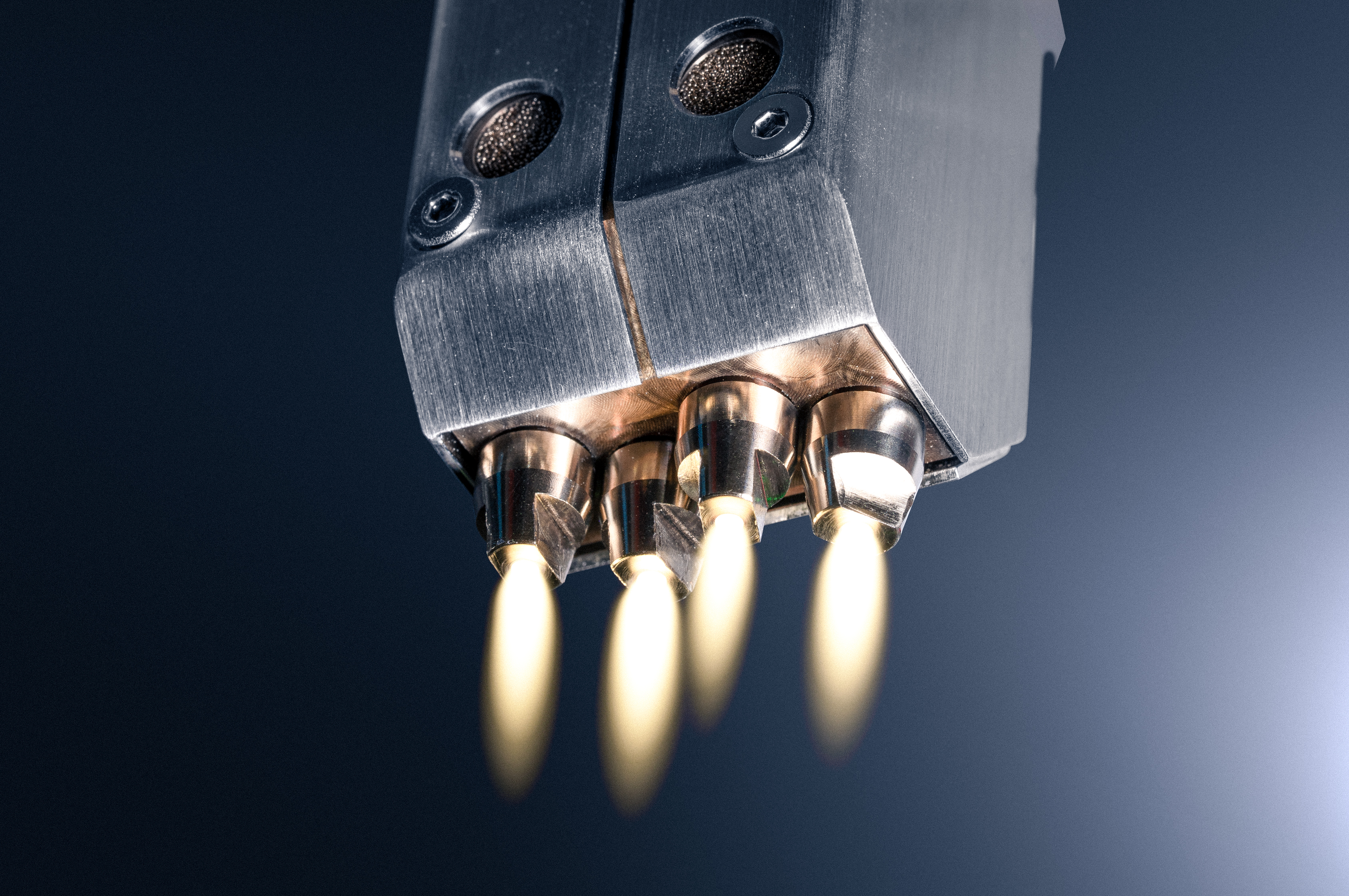

PlasmaBeam QUATTRO
Housing dimensions
Tabletop
W 540 mmx H 510 mmx D 600 mm
Control unit
Manual control
Semi-automatic control
Dimensions Plasma nozzle
W 34 mm x H 85 mm x D 207 mm
Weight: 1.0 kg
Cable length: 3 m
Treatment width
approx. 32 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 8 bar
Gas consumption: 8 m³/h
Generator
40.00 kHz | Power output 4 x 300 W
Gas supply
6 mm quick-connect bulkhead fitting
Power supply
230 V | 16 A
PlasmaBeam RT
Housing dimensions
Tabletop
W 540 mmx H 280 mmx D 450 mm
Dimensions Plasma nozzle
W 184 mm x H 600 mm x D 192 mm
Weight: 30.0 kg
Cable length: 3 m
Treatment width
approx. 120 mm
Process and cooling gas
Dry, oil-free compressed air
Inlet pressure: 5 - 8 bar
Gas consumption: 4 m³/h
Generator
40.00 kHz | Power output 2 x 300 W
Gas supply
6 mm quick-connect bulkhead fitting
Power supply
100 - 240 V
