Freestanding vacuum chamberVC M1200²
Vacuum chamber with a volume of approximately 1,440 litres or more
Our modular vacuum chambers can be configured in 500 mm increments.
starting at 47,700 € excl. VAT and shipping
Start an inquiry
Modular vacuum chambers
The VC M1200² vacuum chamber from Diener electronic is a hermetically sealed container and forms the basis of many vacuum systems. The respective base chamber consists of:
- the front panel with a vacuum door
- the rear wall with various connection flanges
- two chamber modules, each 500 mm deep, each with 2 x KF 40 connection flanges
All modules are manufactured from aluminium. To easily increase the litre capacity, Diener electronic can install extension modules in 500 mm increments between the front panel and the rear wall, depending on the specific requirements.
Technical data

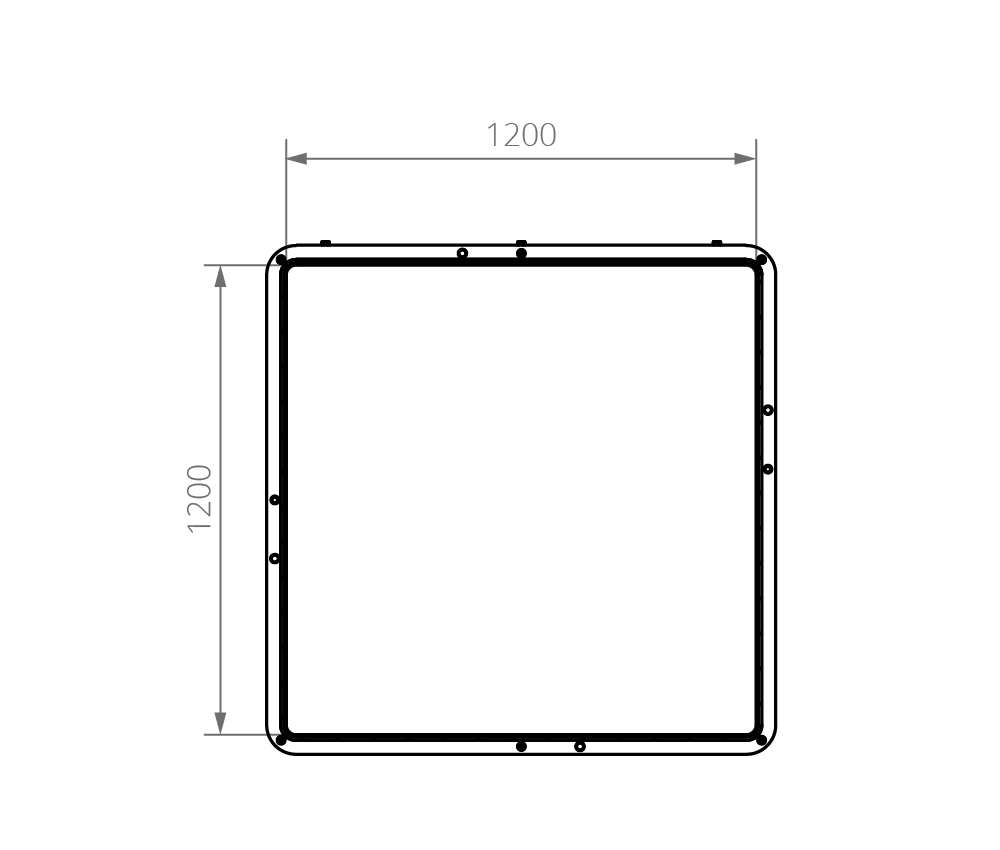

Internal dimensions
Width
1200 mm
Height
1200 mm
Depth
1000 mm
Volume
approx. 1440 liters

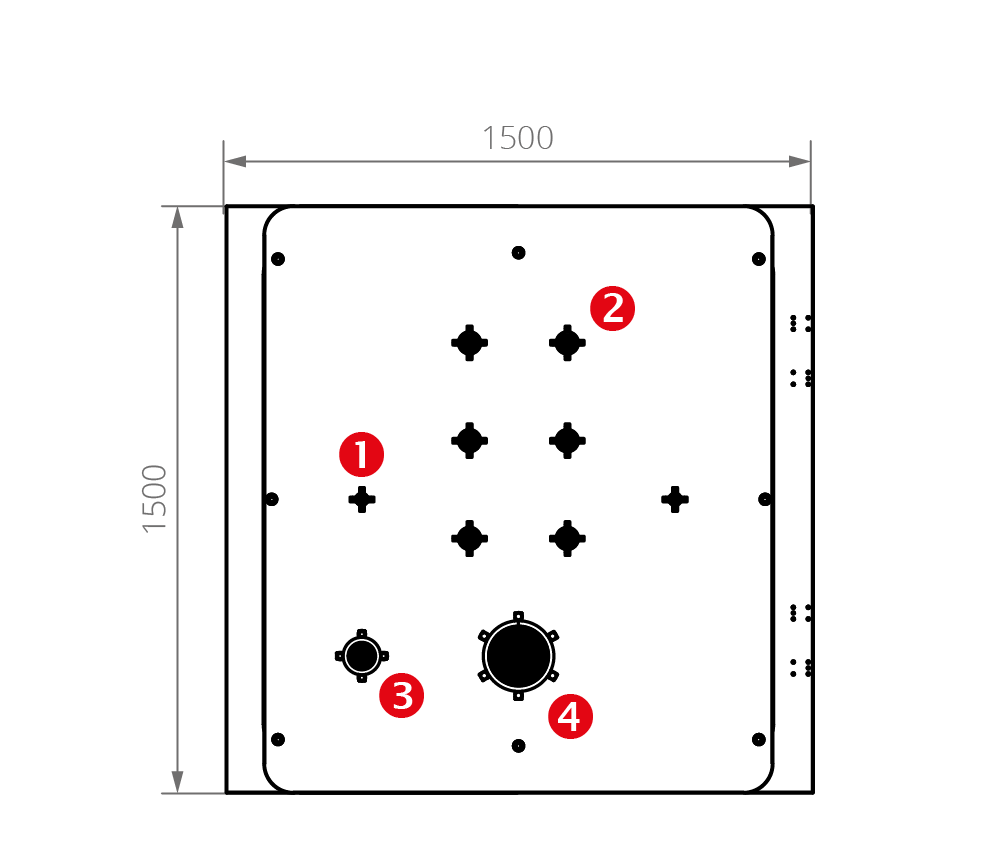

Connections Back panel
KF 16
2
KF 40
6
ISO K63
1
ISO K160
1

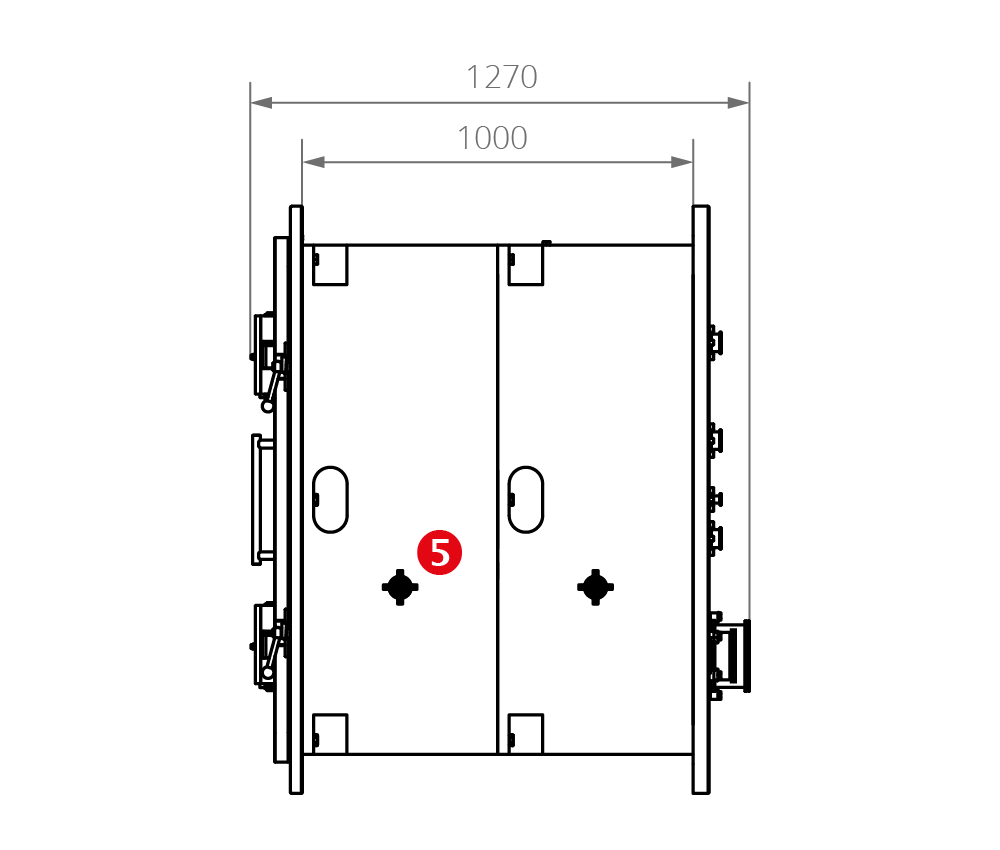

Connections Sidewall
KF 40
4
Door
Hinged door
Weight
approx. 1115 kg
Material
Aluminium
Optional
Depth modularly expandable in 500 mm steps: ± 720.0 l; ± 315.00 kg; 2 x KF 40
Technical changes reserved.
