Parylene coating systemParylene P260
Large compartment with a capacity of approx. 260 litres

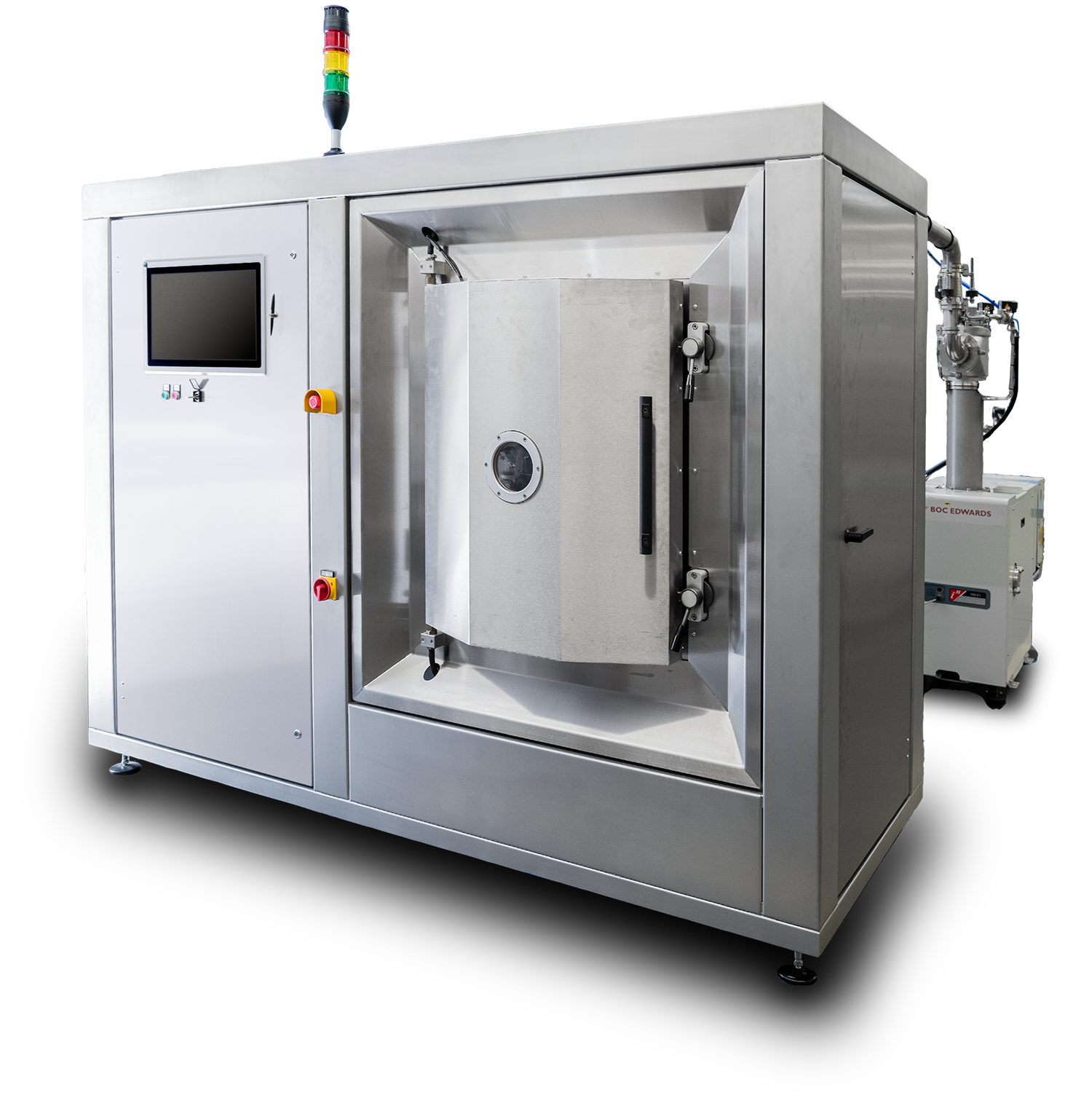

The Parylene P260 system from Diener electronic stands out thanks to its rotary drum, which has a diameter of approximately 560 mm and a chamber volume of approximately 260 litres
Start an inquiry
Parylene is the short name for the polymer group known as poly(para-xylylenes). These polymers consist of variously substituted para-xylylenes. The starting point for the coating process is dimers. These are molecular compounds consisting of two identical subunits, known as monomers.
Properties and advantages:
Parylene coatings offer a wide range of benefits. Parylene …
- are completely conformal: i.e. they conform to even complex substrate contours such as sharp edges, bores or blind holes
- are pinhole-free even at film thicknesses as low as approx. 0.5 µm.
- are chemically insoluble and resistant to a wide range of chemicals.
- exhibit excellent barrier properties against moisture and chemicals.
- have a high electrical breakdown strength.
- have dry-lubricating properties (low coefficient of friction).
- are hydrophobic: contact angle of H₂O between 92° and 98°
- are transparent to between 90 and 96 per cent of visible wavelengths (depending on the type).
- are biocompatible: Parylene types C and N can be deposited, which can be certified to USP Class VI, ISO 10993 and FDA standards.
Chamber volume

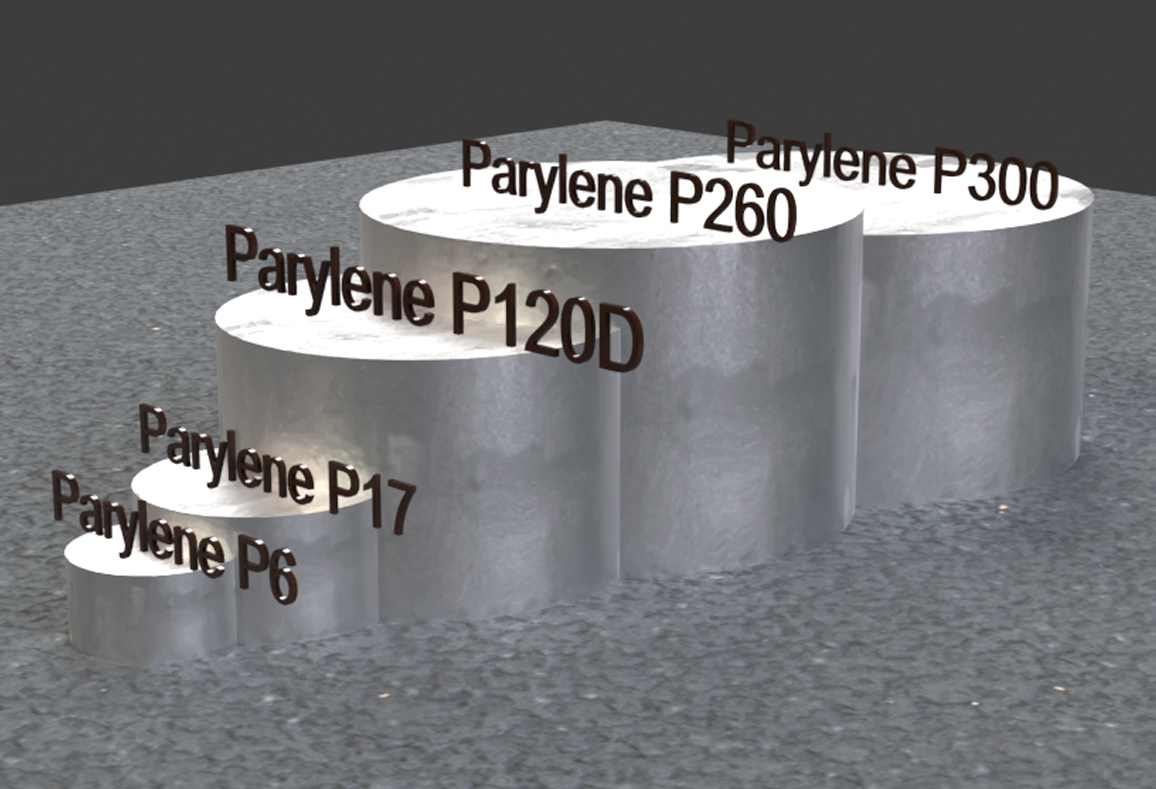

Depending on the application rate, Diener electronic can offer you a suitable chamber size. Chamber capacities range from approximately 6 to 300 litres.
cooling trap

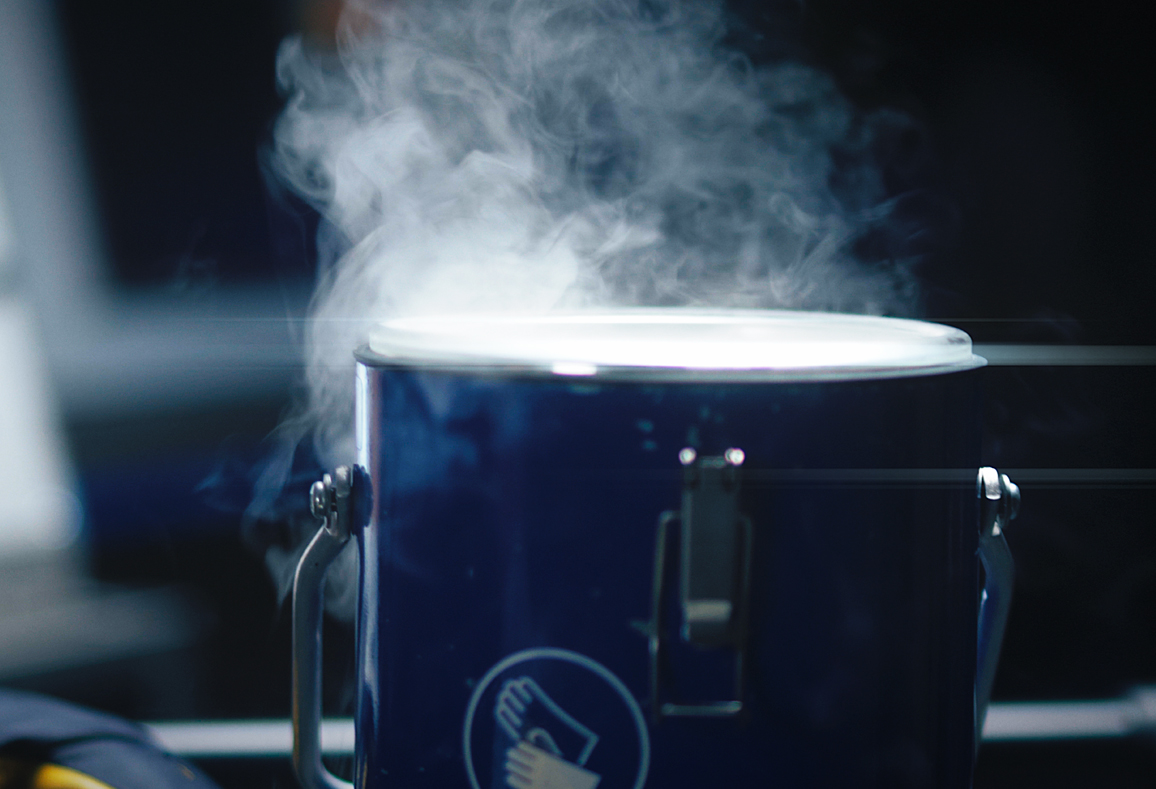

The cold traps required for parylene coating are manufactured using liquid nitrogen or, on request, with an electromechanical cooler. Furthermore, Diener electronic’s 30 years of experience helps ensure that the most suitable cold trap is selected.
Everything in motion
To ensure complete coating of the surfaces, the workpieces must remain in motion during the treatment. For Parylene P260, Diener electronic is currently developing a rotary drum. It will rotate and utilise gravity to continuously turn the components being treated. Quick and easy loading and unloading are among the other advantages of a rotary drum.
Heating
To prevent unwanted deposits, the heating system is designed to suit the chamber volume. The larger the chamber volume, the larger the heating system required.
Technical data
Housing dimensions
Standalone
Vacuum chamber
Stainless steel, Hinged door
⌀ 640 mm x
H 800 mm; Volume approx. 257 liters
Workpiece holder / Part fixture
Rotary drum, Stainless steel
⌀ 560 mm x
D 650 mm; Volume approx. 160 liters
Coating material
Parylene N, Parylene C, Parylene D, Parylene F-VT4
Possible coating thickness
0.05 - 50.00 μm
Pyrolysis unit
4.00 kW, max. 850 °C
Cold trap
Liquid nitrogen
Electro-mechanical cooler
Power supply
400 V | 32 A
Technical changes reserved.
Get a custom quote for Parylene coating system Parylene P260?
Start an inquiry
FAQ Frequently Asked Questions
How thick is a parylene coating produced using the Parylene P260 system?
Depending on your requirements, we at Diener electronic recommend applying a parylene layer with a thickness of between approx. 0.1 and 50 micrometres using the Parylene P260 system. A pinhole-free protective layer is achieved from 1 to 2 micrometres.
What are the chamber sizes for Parylene systems?
Depending on the application rate, Diener electronic can offer you a suitable chamber size. The chamber volumes range from approximately 6 to 300 litres.
Are exhaust air filters necessary?
Yes, all systems must be connected to a proper exhaust system, regardless of the type of gas used! Nitrogen oxides, exhaust gases, fine oil mist (from oil pumps), etc. are produced, which must not be inhaled; furthermore, the gases are often acidic, meaning they promote the rusting of surrounding parts, machinery and equipment.
Why is a heater fitted into the parylene systems?
To minimise unwanted deposits in the vacuum chamber, the heating system is designed to match the chamber’s volume. The larger the volume, the larger the heating system required. Furthermore, the heating system helps to improve efficiency and reduce energy consumption.
