Vacuum chamber VC P240x240

Vacuum chamber VC P240x240Vacuum chamber made of extruded aluminium profiles

The VC P240x240 is made of a unique, flexible chamber system based on extruded aluminium profiles. The three meter long profiles are cut to the desired length and equipped with a bolted rear wall and a door. Slits are provided in the side walls of the profile for easy insertion of the product carriers.

Vacuum chamber VC P110x120Vacuum chamber VC P150x160Vacuum chamber VC P240x240Vacuum chamber VC P305x300Vacuum chamber VC P572x125Vacuum chamber VC P400x400Vacuum chamber VC P400x400 HVVacuum chamber VC P400x600Vacuum chamber VC P600x400Vacuum chamber VC P700DVacuum chamber VC M600²Vacuum chamber VC M800²Vacuum chamber VC M1000²Vacuum chamber VC M1200²

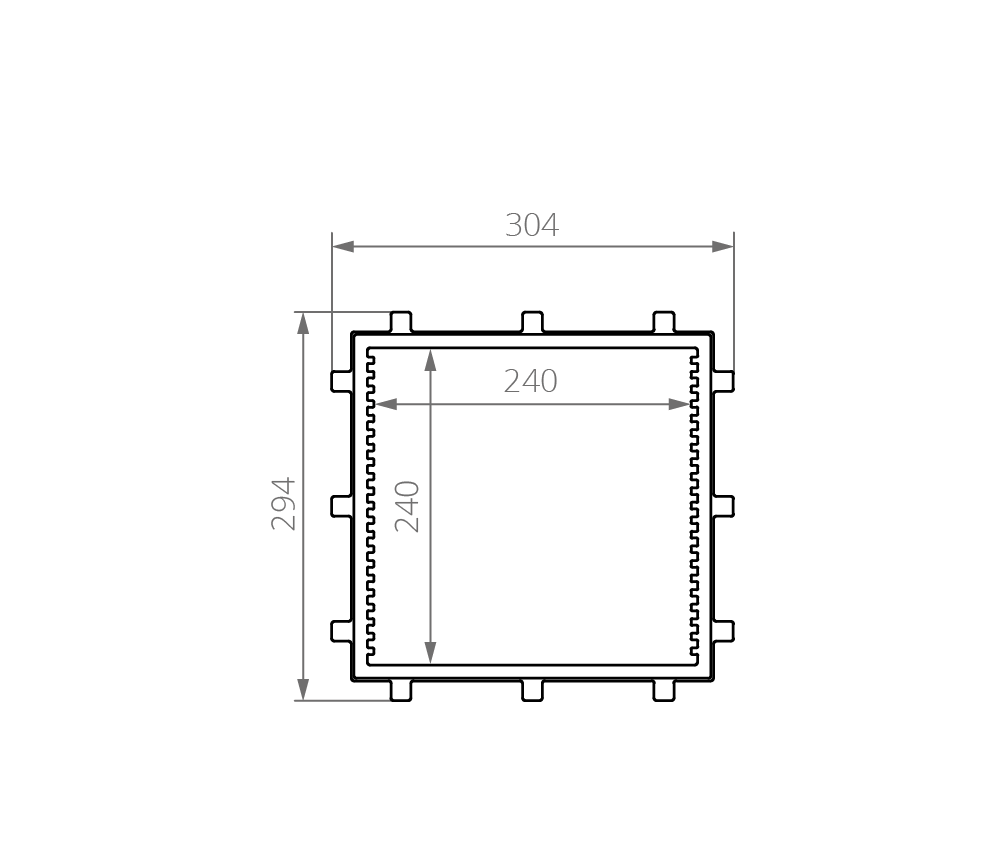

Internal dimensions

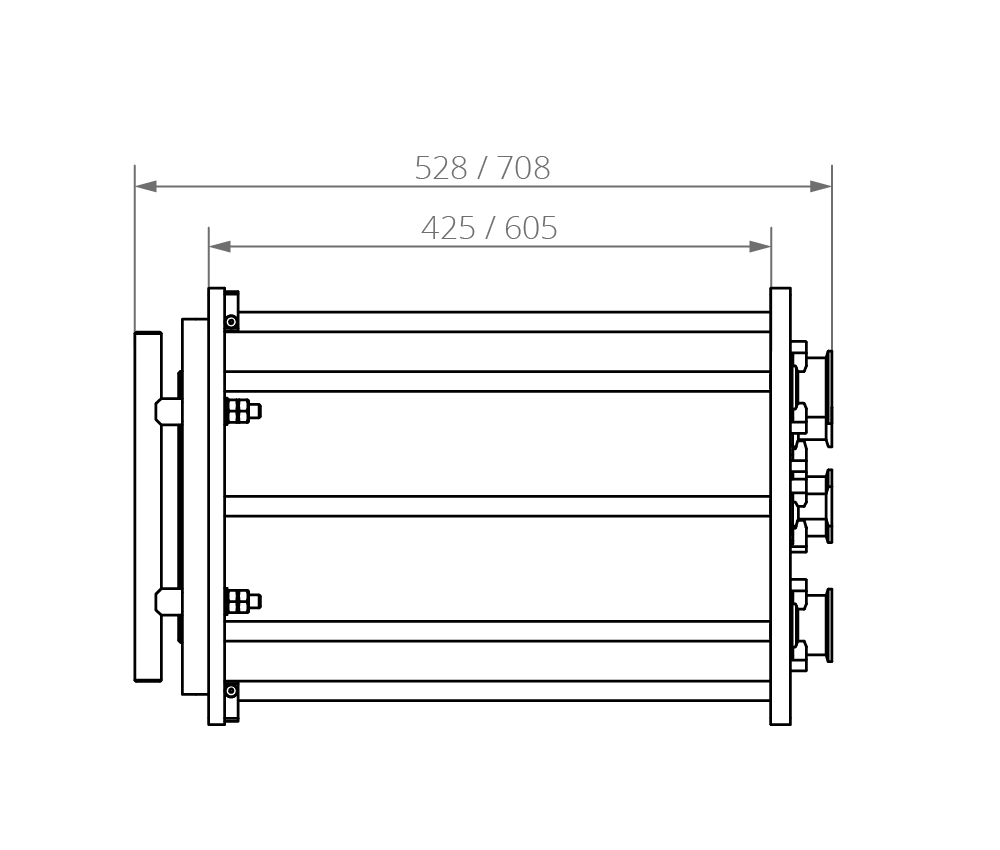

Length: up to 3000 mm (standard: 420 mm, 600 mm)
Width: 240 mm
Height: 240 mm
Front panel (optional): 8 U (1 U = 44.45 mm)

Volume

from approx. 24 to 35 liters

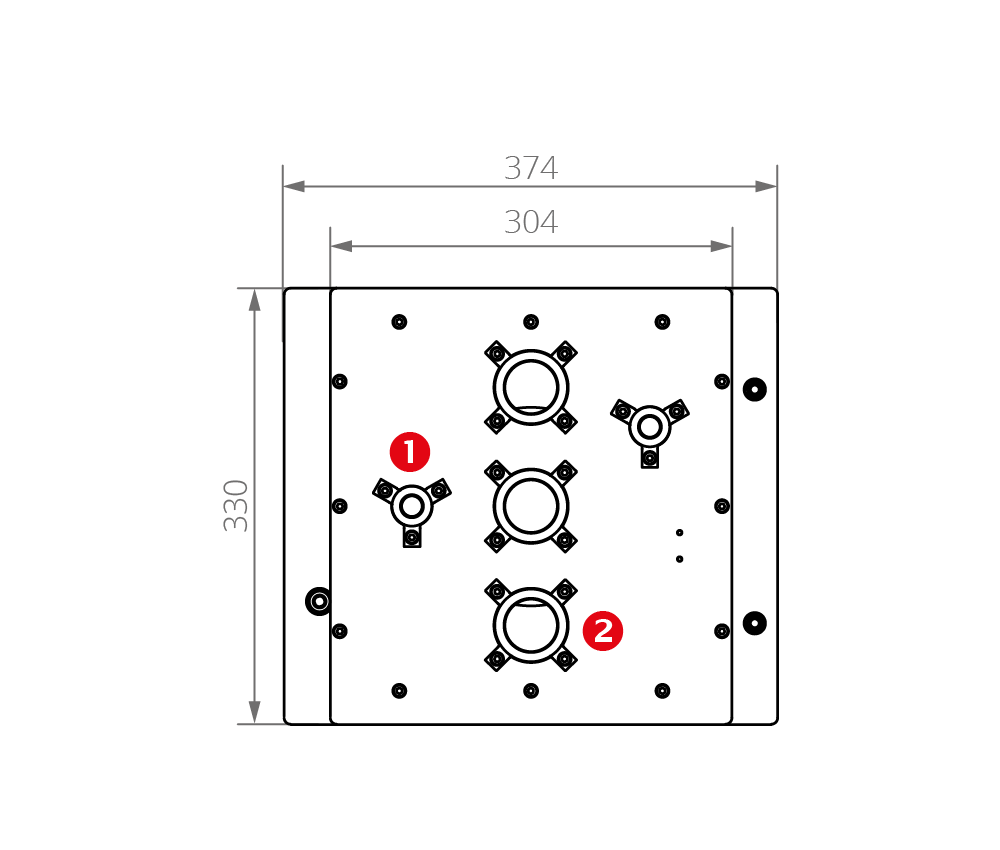

Connections

2 x KF 16
3 x KF 40

Door

Hinged door with sight glass

starting at 2,750 € excl. VAT and shipping

Start an inquiry  Datasheet (PDF)
