Vacuum chamber VC P305x300

Vacuum chamber VC P305x300Vacuum chamber made of extruded aluminium profiles

The VC P305x300 is made of a unique, flexible chamber system based on extruded aluminium profiles. The three meter long profiles are cut to the desired length and equipped with a bolted rear wall and a door.

Vacuum chamber VC P110x120Vacuum chamber VC P150x160Vacuum chamber VC P240x240Vacuum chamber VC P305x300Vacuum chamber VC P572x125Vacuum chamber VC P400x400Vacuum chamber VC P400x400 HVVacuum chamber VC P400x600Vacuum chamber VC P600x400Vacuum chamber VC P700DVacuum chamber VC M600²Vacuum chamber VC M800²Vacuum chamber VC M1000²Vacuum chamber VC M1200²

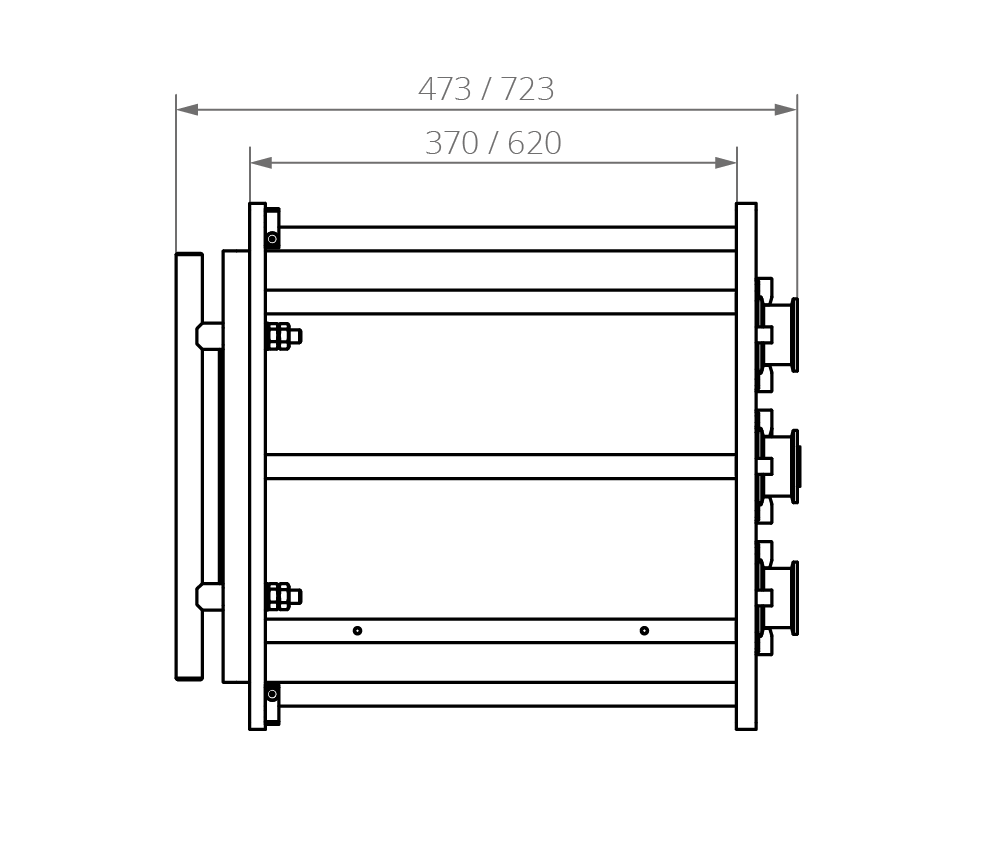

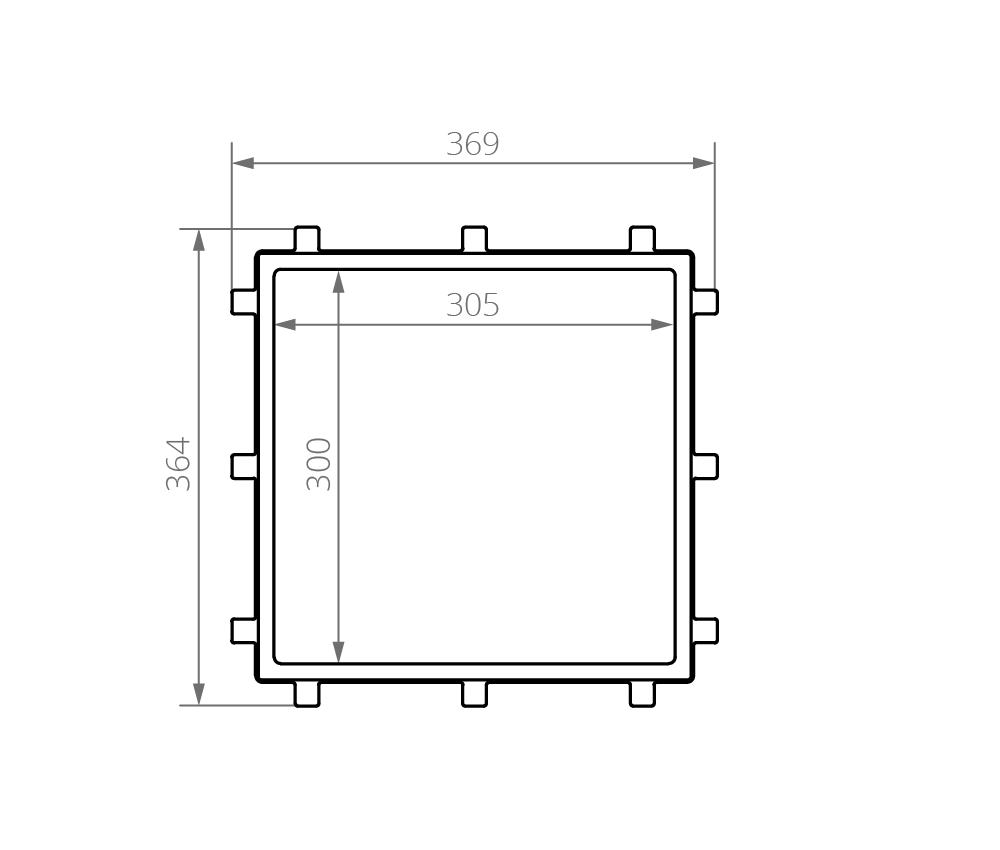

Internal dimensions

Length: up to 3000 mm (standard: 370 mm, 620 mm)
Width: 305 mm
Height: 300 mm
Front panel (optional): 9 U (1 U = 44.45 mm)

Volume

from approx. 34 to 57 liters

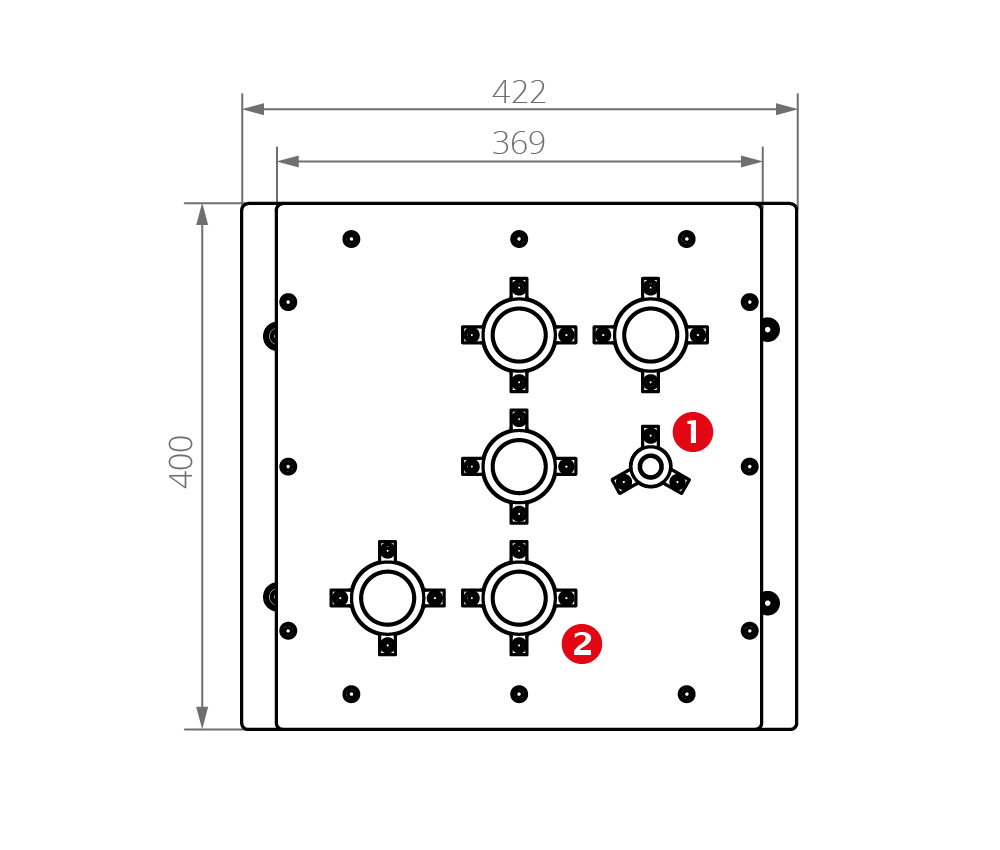

Connections

1 x KF 16
5 x KF 40

Door

Hinged door with sight glass

starting at 3,330 € excl. VAT and shipping

Start an inquiry  Datasheet (PDF)
